Thiết bị lưu trữ QNAP ES1640dc-v2-E5-96G

 Giá bán: Liên hệ

Bảo hành: 12 tháng

Mô tả

Thông số sản phẩm

Đánh giá sản phẩm Thiết bị lưu trữ QNAP ES1640dc-v2-E5-96G
Thông tin sản phẩm Thiết bị lưu trữ QNAP ES1640dc-v2-E5-96G
16-Bay Enterprise ZFS NAS, SAS 12G/6G, Xeon E5-2420 v2 2.2GHz, 32GB RAM, 12-LAN (4 SFP+ / 2 RJ45 for Each Controller), 10G-ready, iSCSI, Storage pool with RAID 0, 1, 5, 6, 10, 50, 60, RAID TP, triple Mirror, max 64 GB RAM, PCIe expansion slot x1 installed with LAN-10G2T-X550, redundant power suppluy, with Rail Kit
Thông số kỹ thuật chi tiết Thiết bị lưu trữ NAS QNAP ES1640dc-v2-E5-96G

Host Interface Three SAS 12Gb/s 4x wide port (SFF-8644)
Hard Drive 16 x 3.5″/2.5″ SAS 12Gbps/6Gbps hard drive, or 2.5″ SAS SSD; lockable tray
LED Indicators System Power LED (Blue): on/off
System Status (Green/ Red): in operation, system errors, low power, disk lost, disk failure, system performing take-over, power supply unit unplugged
LCD Status Display (Two-digit number): Status of JBOD connection
Form Factor 3U rackmount
Dimensions 618 (D) x 446.2 (W) x 132 (H) (excluding front grips)
Weight Net weight (NAS only): 24.11 kg/ 53.15 lb
Gross weight (with packing and accessories): 33.76 kg/ 74.43 lb
Temperature 0- 40˚C
Humidity 5~95% RH non-condensing, wet bulb: 27˚C
Power Consumption (In Operation) 344.19 W
Sound Level* Sound pressure (LpAm): 53.5 dB(A)
Power Supply Redundant/ Hot Swap ATX Power Supply, 450W, 90-240Vac~, 50-60Hz
Fan Hot-swappable fan module (60*60*38mm; 16000RPM/12v/2.8A x 3)
Electro-Magnetic Compatibility (EMC) • FCC Class A (USA only)
• CE Mark ( EN55022 Class A, EN55024)
SAFETY Standard • EN60950
• BSMI
• VCCI
• CB
• LVD

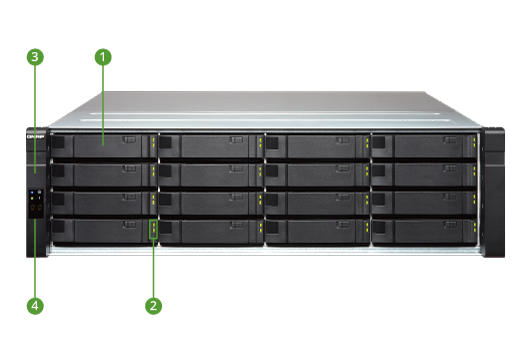

Front

1. Hard Drive Tray
2. Hard Drive LED Indicators
3. Power On Button
4. LED Indicators
System Power LED (Blue): on/off
System Status (Green/ Red): in operation, system errors, low power, disk lost, disk failure, system performing take-over, power supply unit unplugged
LCD Status Display (Two-digit number): Status of JBOD connection

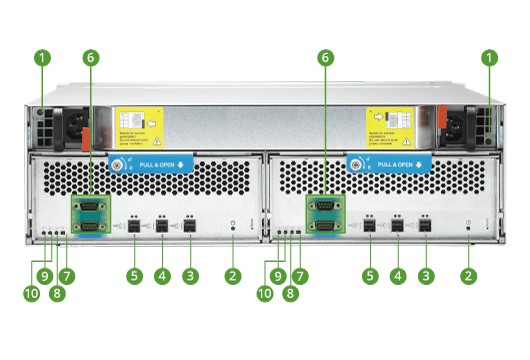

Rear

1. Power Supply LED (Green/ Orange) 6. COM Port x 2
2. Power Button 7. Controller Status Light (Green/ Orange)
3. Mini-SAS Port (SFF-8644) (Reserved) 8. Fan Status Light (Green/ Orange)
4. Mini-SAS Port (SFF-8644) Input 9. Battery Status Light (Green/ Orange)
5. Mini-SAS Port (SFF-8644) Output 10. High Availability LED (Green/ Orange)

* Testing Environment:
Refer to ISO 7779 ; Maximum HDD loaded ; Bystander Position ; Average data from 1 meter in front of operating NAS

Designs and specifications are subject to change without notice.
