Teltonika RUT241
Giá bán: Liên hệ
Bảo hành: 12 Tháng
Đại lý, dự án liên hệ trực tiếp để có báo giá tốt nhất.
Mô tả
Bộ định tuyến di động công nghiệp Teltonika RUT241, Bộ phát wifi 4G
Teltonika RUT241 bộ phát wifi 4G công nghiệp phiên bản mới ra mắt thay thế cho model Teltonika RUT240.
Teltonika RUT241 Bộ định tuyến di động 4G LTE & WiFi nhỏ gọn nhưng mạnh mẽ. RUT241 phù hợp để triển khai trong các ứng dụng IoT quan trọng cần các tính năng Networking, VPN và bảo mật nâng cao.
Việt Tuấn nhà phân phối thiết bị Teltonika RUT241 chính hãng tại Việt Nam, với đầy đủ CO,CQ cho các đại lý, dự án.

Router wifi 4G Teltonika RUT241, Router 4G công nghiệp, Industrial router, Bộ phát wifi 4G cắm điện
Thiết bị phát wifi 4G RUT241 là bộ định tuyến di động 4G / LTE không dây, nhỏ gọn, tiết kiệm chi phí dành cho các giải pháp chuyên nghiệp, được trang bị Wi-Fi với chức năng điểm phát sóng. RUT241 cung cấp khả năng cải thiện hiệu suất cho các giải pháp kết nối Internet.
Teltonika RUT241 Bộ định tuyến di động cung cấp hiệu suất cao cho liên lạc di động trong các môi trường khắc nghiệt như phạm vi nhiệt độ rộng, độ ẩm cao, độ rung, v.v.
Teltonika RUT241 Được trang bị 2 port Ethernet và các chỉ báo kỹ thuật số cho trạng thái đầu vào / đầu ra và cường độ tín hiệu, bộ định tuyến RUT241 cung cấp khả năng quản lý mạng và tự động hóa đơn giản. Bộ định tuyến di động RUT241 để bảo vệ dữ liệu được truyền, sử dụng các thuật toán mã hóa mạnh mẽ với bộ xử lý Mediatek MIPS 24Kc, 580 MHz và áp dụng các chức năng mạng VLAN độc đáo, cân bằng tải, kiểm soát hạn ngạch di động, bộ lọc web, sao lưu mạng, chuyển đổi dự phòng tự động. Thiết bị phát wifi 4G

Kết nối internet an toàn và ổn định cho các ứng dụng công nghiệp, RUT241 được trang bị HĐH RutOS và các tính năng bảo mật như OpenVPN, IPsec, Firewall, Hotspot, SMS control và hỗ trợ RMS.
Đầu nối SMA bên ngoài cho phép bạn kết nối ăng-ten Wi-Fi bên ngoài và ăng-ten 4G / LTE và có được mức tín hiệu tốt nhất. Sử dụng bộ điều hợp mua riêng, bạn có thể gắn bộ định tuyến trên thanh DIN trên các thanh ray đặc biệt. Bộ định tuyến có thể được sử dụng như một bộ định tuyến di động trên ô tô bằng cách lắp đặt nó trong ô tô mà không cần bộ chuyển đổi điện áp bổ sung.
Bộ định tuyến di động RUT241 giúp bạn luôn truy cập Internet di động tốc độ cao với khả năng chuyển đổi dự phòng tự động. Giao tiếp không dây với bộ định tuyến RUT241 mở ra các cơ hội kinh doanh lớn và chức năng, dễ thiết lập, độ tin cậy và chi phí thấp khiến RUT241 trở thành giải pháp M2M / IoT tốt nhất cho quản lý cơ sở hạ tầng, giao tiếp và truyền thông. Thiết bị phát wifi từ Sim 4G
Tham khảo thêm một số model: Teltonika RUT240, Teltonika RUT950, Teltonika RUT955, Teltonika RUTX12
Thông số kỹ thuật bộ định tuyến 4G Teltonika RUT241, Router 4G công nghiệp, Industrial router, Bộ phát wifi 4G :
MOBILE | |
Mobile module | 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps |
Status | Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID |
SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
Black/White list | Operator black/white list |
Band management | Band lock, Used band status display |
APN | Auto APN |
Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
Passthrough | Router assigns its mobile WAN IP address to another device on LAN |
Multiple PDN (optional) | Possibility to use different PDNs for multiple network access and services (not available in standard FW) |
WIRELESS | |
Wireless mode | IEEE 802.11b/g/n, Access Point (AP), Station (STA) |
WiFi security | WPA2-Enterprise – PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation |
SSID | SSID stealth mode and access control based on MAC address |
WiFi users | Up to 50 simultaneous connections |
Wireless Hotspot | Captive portal (Hotspot), internal/external Radius server, built in customizable landing page |
ETHERNET | |
WAN | 1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
LAN | 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
NETWORK | |
Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, RIPng, OSPF6) |
Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake On Lan (WOL) |
VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
Firewall | Port forward, traffic rules, custom rules |
DHCP | Static and dynamic IP allocation, DHCP Relay, Relayd |
QoS / Smart Queue Management (SQM) | Traffic priority queuing by source/destination, service, protocol or port, traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
DDNS | Supported >25 service providers, others can be configured manually |
Network backup | VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as backup, using automatic Failover |
Load balancing | Balance your internet traffic over multiple WAN connections |
SSHFS (optional) | Possibility to mount remote file system via SSH protocol (not available in standard FW) |
SECURITY | |
Authentication | Pre-shared key, digital certificates, X.509 certificates |
Firewall | Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
Attack prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
VLAN | Port and tag based VLAN separation |
Mobile quota control | Set up custom data limits for the SIM card |
WEB filter | Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only |
Access control | Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
VPN | |
OpenVPN | Multiple clients and server can be running simultaneously, 12 encryption methods |
OpenVPN Encryption | DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
IPsec | IKEv1, IKEv2, supports up to 4 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256) |
GRE | GRE tunnel |
PPTP, L2TP | Client/Server services can run simultaneously |
Stunnel | Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs’ code |
SSTP | SSTP client instance support |
ZeroTier | ZeroTier VPN |
WireGuard | WireGuard VPN client and server support |
MODBUS | |
MODBUS TCP SLAVE | |
ID filtering | Respond to one ID in range [1;255] or any |
Allow Remote Access | Allow access through WAN |
Custom registers | MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality |
MODBUS TCP MASTER | |
Supported functions | 01, 02, 03, 04, 05, 06, 15, 16 |
Supported data formats | 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC) |
MODBUS DATA TO SERVER | |
Protocol | HTTP(S), MQTT, Azure MQTT |
MQTT GATEWAY | |
MQTT gateway | Allows sending commands and receiving data from MODBUS Master through MQTT broker |
MONITORING & MANAGEMENT | |
WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI ,troubleshoot, event log, system log, kernel log |
FOTA | Firmware update from sever, automatic notification |
SSH | SSH (v1, v2) |
SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
Call | Reboot, Status, WiFi on/off, Mobile data on/off, Output on/off |
TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
MQTT | MQTT Broker, MQTT publisher |
SNMP | SNMP (v1, v2, v3), SNMP trap |
JSON-RPC | Management API over HTTP/HTTPS |
MODBUS | MODBUS TCP status/control |
RMS | Teltonika Remote Management System (RMS) |
IoT PLATFORMS | |
Cloud of Things | Allows monitoring of: Device data, Mobile data, Network info, Availability |
ThingWorx | Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
Cumulocity | Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP |
Azure IoT Hub | Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server |
SYSTEM CHARACTERISTICS | |
CPU | Mediatek MIPS 24Kc 580 MHz |
RAM | 128 MB, DDR2 |
FLASH storage | 16 MB, SPI Flash |
FIRMWARE / CONFIGURATION | |
WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup, restore point |
FOTA | Update FW/configuration from server |
RMS | Update FW/configuration for multiple devices |
Keep settings | Update FW without losing current configuration |
FIRMWARE CUSTOMIZATION | |
Operating system | RutOS (OpenWrt based Linux OS) |
Supported languages | Busybox shell, Lua, C, C++ |
Development tools | SDK package with built environment provided |
INPUT/OUTPUT | |
Input | 1 x Digital input, 0 – 5 V detected as logic low, 8 – 30 V detected as logic high |
Output | 1 x Digital open collector output, max output 30 V, 300 mA |
Events | SMS, EMAIL, RMS |
POWER | |
Connector | 4 pin industrial DC power socket |
Input voltage range | 9 – 30 VDC, reverse polarity protection, surge protection >33 VDC 10us max |
PoE (passive) | Passive PoE over spare pairs (available from HW revision 0007 and batch number 0010). Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt |
Power consumption | < 6.5 W Max |
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) | |

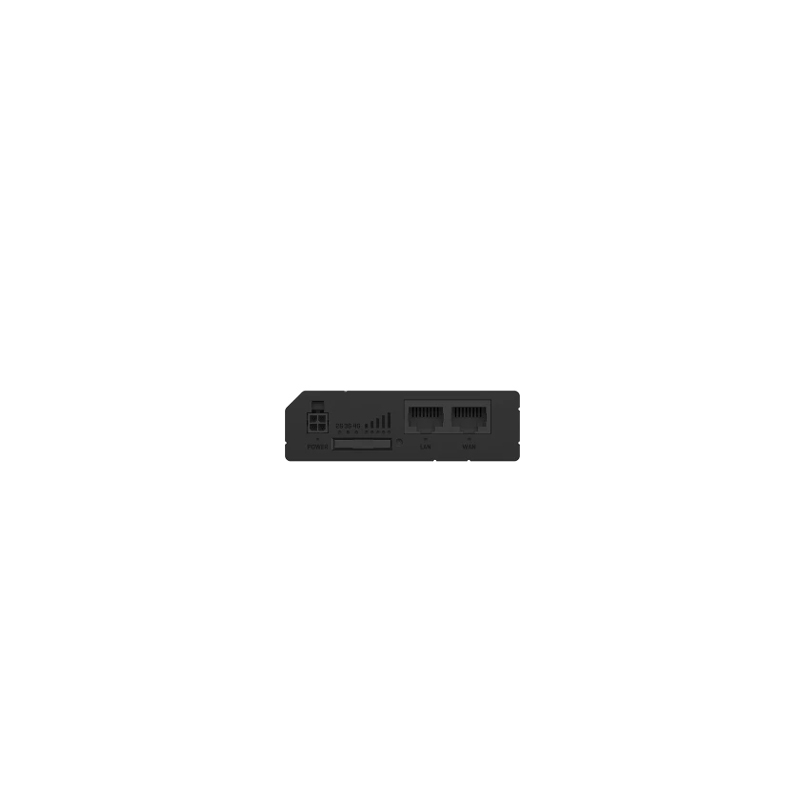

Ethernet | 2 x RJ45 ports, 10/100 Mbps |
I/O’s | 1 x Digital Input, 1 x Digital Output on 4 pin power connector |
Status LEDs | 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED |
SIM | 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder |
Power | 1 x 4 pin DC connector |
Antennas | 2 x SMA for LTE, 1 x RP-SMA for WiFi antenna connectors |
Reset | Reboot/Factory reset button |
PHYSICAL SPECIFICATION | |
Casing material | Aluminium housing with DIN rail mounting option, plastic panels |
Dimensions (W x H x D) | 83 x 25 x 74 mm |
Weight | 125 g |
Mounting options | Bottom and sideways DIN rail mounting slots |
OPERATING ENVIRONMENT | |
Operating temperature | -40 °C to 75 °C |
Operating humidity | 10% to 90% non-condensing |
Ingress Protection Rating | IP30 |
REGULATORY & TYPE APPROVALS | |
Regulatory | CE/RED, UKCA, CB |
EMI IMMUNITY | |
Standards | EN 301 489-1 V2.2.3 EN 301 489-17 V3.2.4 Final draft EN 301 489-52 V1.2.0 EN 55032:2015+A1:2020 EN 55035:2017+A11:2020 EN 61000-3-3:2013+A1:2019 EN IEC 61000-3-2:2019 |
ESD | EN 61000-4-2:2009 |
Radiated Immunity | EN 61000-4-3:2020 |
EFT | EN 61000-4-4:2012 |
Surge Immunity (AC Mains Power Port) | EN 61000-4-5:2014+A1:2017 |
Conducted Immunity | EN 61000-4-6:2014 |
DIP | EN IEC 61000-4-11:2020 |
RF | |
Standards | EN 300 328 V2.2.2, EN 301 511 V12.5.1, EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1 |
SAFETY | |
Standards | EN IEC 62311:2020, EN 50665:2017, EN IEC 62368-1:2020+A11:2020, IEC 62368-1:2018 |
Thiết bị phát wifi 4G
Thiết bị phát wifi từ Sim 4G
Ứng dụng làm Bộ phát wifi ô tô, chuẩn công nghiệp sử dụng SIM 3G, 4G để phát wifi
