LM-8000 Server Load Balancer

Mô tả

Thông số sản phẩm

Đánh giá sản phẩm LM-8000 Server Load Balancer

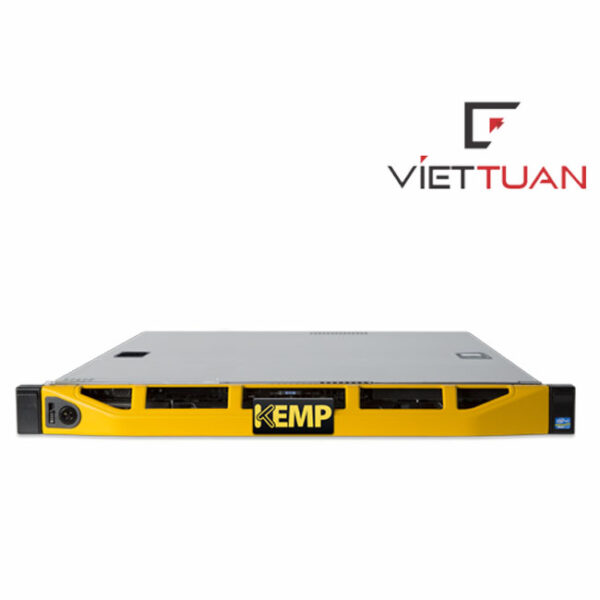

KEMP LM-8000 Server Load Balancer – The LoadMaster 8000 provides optimized performance for high transaction web infrastructures and features:
6 X 10Gb SFP+ Direct Attach Ports
20 Gbps L7 balancer throughput
SSL TPS (2K Keys): 16,000
SSL TPS (1K Keys): 25,000
Servers Supported: 1,000 Physical /1,000 Virtual
L4 Concurrent Connections: 75,800,000

The LoadMaster™ 8000 appliance represents the ultimate in application delivery performance and functionality for high volume environments. It offers the best quality of experience for connected uses with throughput of over 20Gbps and advanced application delivery features that maintain performance by intelligently adapting to changing network environments. Appliances may be configured as a highly available pair and use the built in global server load balancing for resilient application delivery across sites and in the data center.

The 8000 enables secure and scalable delivery of enterprise workloads such as SAP® and Oracle® and can support over 75 million concurrent connections. Configuration is simplified via the use of application templates which are included for all the major application workloads including Microsoft® Exchange, Skype® for Business and Sharepoint®.

The security of applications is enhanced with features such as a Web Application Firewall (WAF), intrusion detection and authentication services while application resilience to network bottlenecks is delivered with SDN Adaptive. SDN Adaptive integrates with leading SDN controllers to intelligently deliver applications using not only application level health checks but also SDN performance and status metrics.
Performance KEMP LM-8000 Server Load Balancer
Max Balancer L4 Throughput Up To 21 Gbps
Max Balancer L7 Throughput Up To 20 Gbps
380,000 L7 (http) requests per second
525,000 L7 concurrent connections
75,800,000 L4 concurrent connections
SSL Acceleration 2K Keys up to 16,000 TPS
SSL Acceleration 1K keys up to 25,000 TPS
Hardware Specifications KEMP LM-8000 Server Load Balancer
Intel 10 Core Processor
6 x 10Gb SFP+ Direct Attach Ports
64 GB RAM
Local admin via serial and VGA/USB
Dimensions (2U): 434mm (W) x 684mm (D) x 87.3mm (H)
495W Hot-plug, Redundant (1+1) PSU
Certifications: CE/FCC Class A, UL Listed, RoHS Compliant, VCCI
Total Power Consumption (W): 395
Input Voltage: 90-264 VAC; 47-63Hz
Total BTU Heat Output: 1347 BTU/hr
Storage Temperature: -40 to 149 °F (-40 to 65°C)
Operating Temperature: 50 to 95 °F (10°C to 35°C)
Operating Relative Humidity: 10% to 80% non-condensing
