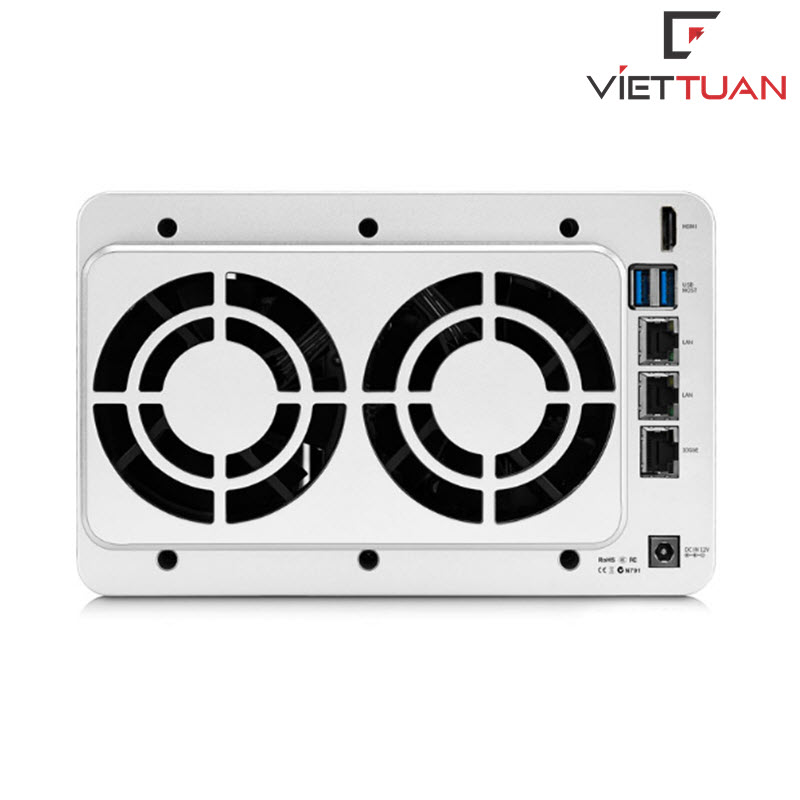

TerraMaster F5-422

Bảo hành: 24 tháng

Đại lý, dự án liên hệ trực tiếp để có báo giá tốt nhất

Mô tả

Thông số kỹ thuật NAS TerraMaster F5-422:

Processor

Processor ModelIntel® Celeron® J3455
Processor ArchitectureX.86 64-bit
Processor FrequencyQuad Core 1.5GHz (Max burst up to 2.3GHz)
Hardware Encryption EngineYes
Hardware Transcoding EngineH.265 (HEVC), MPEG-4 Part 2, MPEG-2, VC-1; maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 60
Memory
System Memory4GB
Pre-installed Memory module4GB (1 x 4GB)
Total Memory Slot Number1
Storage
Disk Slot Number5
Compatible Drive types3.5″ SATA HDD
2.5″ SATA HDD
2.5″ SATA SSD
Maximum Internal Raw Storage Capacity100 TB (20TB x5) (Capacity may vary by RAID types)
Drive Hot SwapYes
File System
Internal DriveBtrfs, EXT4
External DriveEXT3, EXT4, NTFS, FAT32, HFS+
External Ports
RJ-45 1GbE Network Jack2
RJ-45 10GbE Network Jack1
USB3.0 Host Port2
HDMI1
Appearance
Size (H*W*D)227 x 225x 136 mm
Packaging Size (H*W*D)300 x 275 x 186  mm
Weight3.6 kg
Others
System Fan80 x 80 x 25mm  2PCS
Fan ModeSmart, High speed, Middle speed, Low speed
Noise Level27.4 dB(A) (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in idle state)
Power Supply90W
AC Input Voltage100V – 240V AC
Current Frequency50/60 Hz, Single frequency
Power Consumption45W(Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in read/write state)
15 W (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in hibernation)
Limited warranty2 years
CertificateFCC, CE, CCC, KC
EnvironmentRoHS, WEEE
Temperature
Working Temperature0°C  ~ 40°C (32°F ~ 104°F)
Storage Temperature-20°C ~ 60°C (-5°F ~ 140°F)
Relative Humidity 5% ~ 95% RH
