Synology SA6400

Mô tả

Thông số kỹ thuật Synology SA6400

CPU Model AMD EPYC 7272
CPU Quantity 1
CPU Architecture 64-bit
CPU Frequency 12-core 2.9 (base) / 3.2 (turbo) GHz
Hardware Encryption Engine (AES-NI) Yes
System Memory 32 GB DDR4 ECC RDIMM
Memory Module Pre-installed 32 GB (32 GB x 1)
Total Memory Slots 16
Maximum Memory Capacity 1024 GB (64 GB x 16)
Drive Bays 12

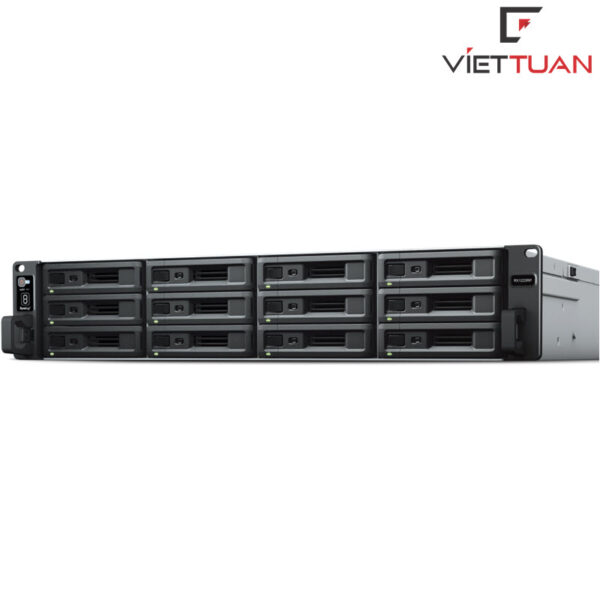

Maximum Drive Bays with Expansion Unit 108 (RX1223RP x 8)
Compatible Drive Type* (See all supported drives) 3.5″ SATA HDD
Hot Swappable Drive* Yes
External Ports
RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)
RJ-45 10GbE LAN Port 2 (with Link Aggregation / Failover support)
Management LAN Port 1
Max. number of LAN ports 15
USB 3.2 Gen 1 Port* 2
Expansion Port 8
PCIe Expansion 2 x Gen3 x8 slots (x8 link)
Form Factor (RU) 2U
Size (Height x Width x Depth) 88 mm x 482 mm x 724 mm
Weight 16.5 kg
Rack Installation Support* 4-post 19″ rack (Synology Rail Kit – RKS-02)
Notes The rail kit is sold separately
System Fan 80 mm x 80 mm x 4 pcs
Noise Level* 55.5 dB(A)
Power Supply Unit / Adapter 550 W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 180.5 W (Access)
88.56 W (HDD Hibernation)
British Thermal Unit 615.89 BTU/hr (Access)
302.18 BTU/hr (HDD Hibernation)
Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
