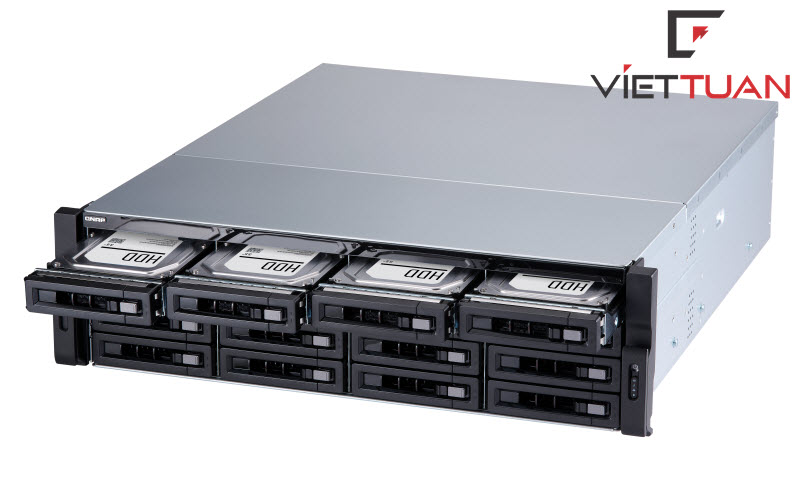

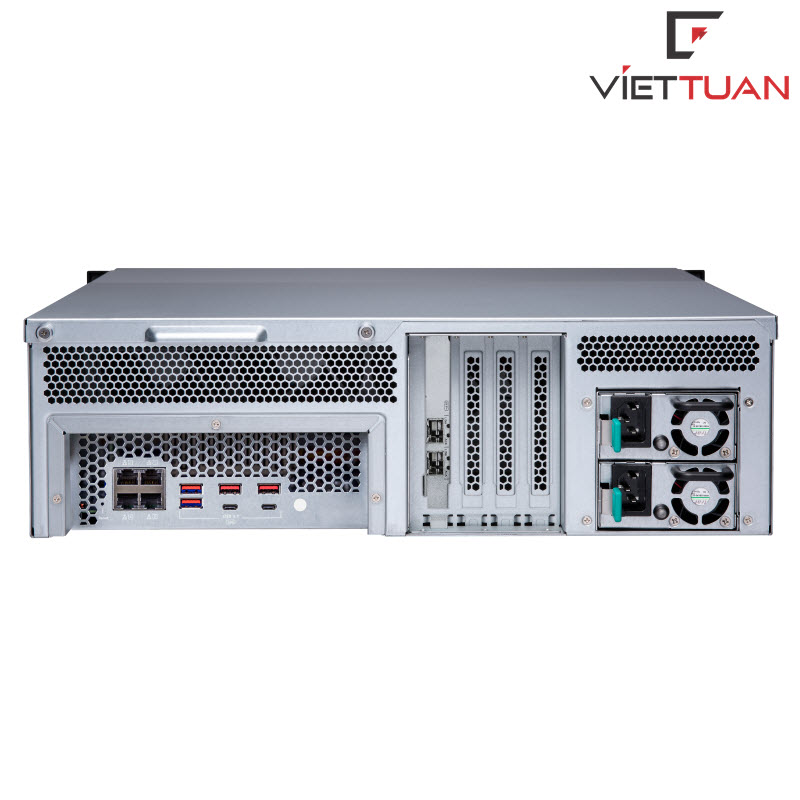

QNAP TS-1683XU-RP-E2124-16G

Đại lý, dự án liên hệ trực tiếp để có báo giá tốt nhất

Mô tả

Thông số kỹ thuật QNAP TS-1683XU-RP-E2124-16G:

CPUIntel® Xeon® E-2124 4-core 3.3 GHz processor (burst up to 4.3 GHz)
CPU Architecture64-bit x86
System Memory16 GB UDIMM DDR4 ECC (2 x 8GB)
Maximum Memory128 GB (4 x 32 GB)
Memory Slot4 x UDIMM DDR4
Flash Memory5GB (Dual boot OS protection)
Drive Bay16 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappableYes
SSD Cache Acceleration SupportYes
GPU pass-throughYes
Gigabit Ethernet Port (RJ45)4
10 Gigabit Ethernet Port2 x 10GbE SFP+ SmartNIC port
Wake on LAN (WOL)Yes
Jumbo FrameYes
PCIe Slot4
Slot 1: PCIe Gen 2 x4 (PCH)
Slot 2: PCIe Gen 3 x8 (CPU)
Slot 3: PCIe Gen 3 x4 (CPU)
Slot 4: PCIe Gen 3 x4 (CPU)
Slot 4 is preinstalled with a 10GbE network adapter
USB 3.2 Gen 2 (10Gbps) Port2 x Type-C USB 3.2 Gen 2 10Gbps
4 x Type-A USB 3.2 Gen 2 10Gbps
Form Factor3U Rackmount
LED IndicatorsHDD 1-16, Status, LAN, storage expansion port status
ButtonsPower, Reset
Dimensions (HxWxD)130 × 481 × 573.5 mm
Weight (Net)13.76 kg
Weight (Gross)21.79 kg
Operating Temperature0 – 40 °C (32°F – 104°F)
Storage Temperature-20 – 70°C (-4°F – 158°F)
Relative Humidity5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit500W(x2), 100-240V
Power Consumption: Operating Mode, Typical130.43 W
Tested with drives fully populated.
FanSystem fan: 3 x 80mm, 12VDC
System WarningBuzzer
Max. Number of Concurrent Connections (CIFS) – with Max. Memory10000
