LigoPTP RapidFire Powering Kit
SKU: POE-MPPTP-RF

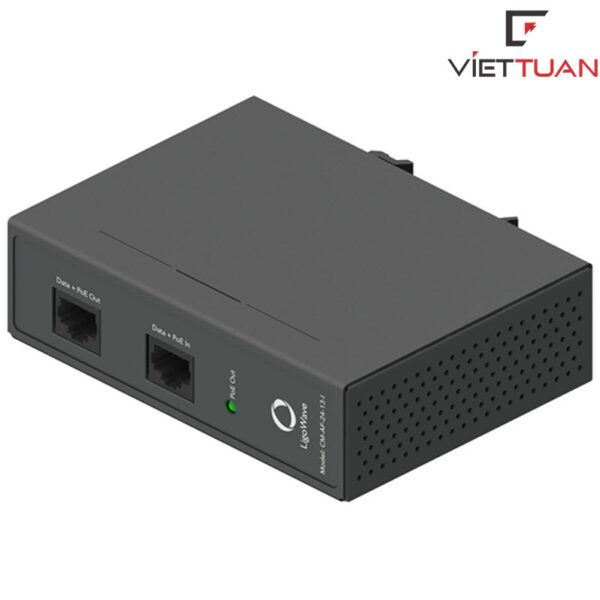

LigoPoE 802.3af/at Inserter
The device is a 48V DC PoE inserter designed for use with LigoPTP RapidFire outdoor series
LigoPTP AC to 48VDC adapter
The adapter is used to power passive PoE of LigoPTP RapidFire from standard AC power source.
LigoPoE 802.3af/at Inserter
Electrical specifications
| DC Input voltage range | 44.0 – 57.0V |
| IEEE 802.3af/at compliant | POE output |
| Output power | up to 28W |
| Power Output | RJ45 pins 1,2,4,5 (+) and 3,6,7,8 (–) |
| Data rate | 10/100/1000Mbps |
| Surge protection | 2kV line to line |
| 6kV line to ground (output port) |
Physical specifications
| DC input | |
| Data input jack | RJ45 |
| Data + Power output jack | RJ45 |
| Dimensions | 117×87×34mm |
| Weight | 270g |
| Operating temperature | –40 to +65°C |
| UTP/FTP cable length | 100m total |
| (from switch to the device) |
LigoPTP AC to 48VDC adapter
Electrical specifications
| Input voltage | 100 – 240VAC, 50/60Hz |
| Output voltage | 48VDC +/– 5% |
| Output power | 24W |
| Protection | Short circuit, Overvoltage, Overcurren |
Physical specifications
| Input jack | IEC320 C6 |
| Output jack | Terminal block connector |
| Dimensions | 107 × 47 × 33mm |
| Weight | 207g |
| Operating temperature | 0 to +40°C |
