Teltonika RUTX11
Giá bán: Liên hệ
Bảo hành: 12 tháng
Đại lý, dự án liên hệ trực tiếp để có báo giá tốt nhất
Mô tả
Bộ định tuyến 4G Teltonika RUTX11 tốc độ lên đến 300 Mbps sử dụng Dual SIM và tính năng chuyển đổi dự phòng linh hoạt. WiFi băng tần kép Wave-2 802.11ac và Bluetooth LE giúp Teltonika RUTX11 định vị toàn cầu (GNSS). Teltonika RUTX11 cũng hỗ trợ nhiều giao thức công nghiệp như MQTT, Modbus TCP, BGP, GRE. Router wifi 4G Teltonika RUTX11 có tốc độ truyền dữ liệu 867 Mbps (WiFi 5) và chịu tải đồng thời lên đến 150 user.
Đặc điểm nổi bật thiết bị Teltonika RUTX11
Tốc độ Kết Nối 4G (LTE): Đạt lên đến 300 Mbps (CAT6) cho 4G và 42 Mbps cho 3G
Thiết bị phát chuẩn 802.11b/g/n/ac Wave 2 (Dual Band, MU-MIMO): tốc độ lên đến 867 Mbps
Xử lý đồng thời đến 150 người dùng, phủ sóng xa tới 25m, giúp đáp ứng nhu cầu kết nối đa dạng và quy mô lớn.
Kết Nối Linh Hoạt: 2 khe SIM Card, 1 cổng WAN (10/100/1000 Mbps) Ethernet, và 3 cổng LAN (10/100/1000 Mbps) Ethernet
Chuyển Đổi Dự Phòng Tự Động: Hỗ trợ tính năng chuyển đổi dự phòng tự động và mạng WAN dự phòng, giảm thiểu rủi ro mất kết nối và đảm bảo ổn định.
Tương thích với Remote Management System (RMS), giúp quản lý tập trung nhiều thiết bị Teltonika từ xa, tối ưu hóa quá trình quản lý.
Hỗ trợ nhiều giao thức công nghiệp như MQTT, Modbus TCP, BGP, GRE, mở rộng khả năng tích hợp và sử dụng trong các môi trường công nghiệp đa dạng.
Đa Chức Năng Với Bluetooth LE và GNSS: Hỗ trợ Bluetooth LE và hệ thống định vị toàn cầu GNSS, cung cấp các dịch vụ định vị và đồng bộ hóa thời gian hiệu quả.
Bộ định tuyến di động công nghiệp TELTONIKA RUTX11
Teltonika RUTX11 bộ định tuyến di động mạnh mẽ và giàu tính năng của Teltonika Networking. Teltonika RUTX11 được trang bị 2 SIM với khả năng tự động chuyển đổi dự phòng linh hoạt, 4 port RJ45 1Gb với 1 WAN & 3 LAN hỗ trợ tự động chuyển đổi MDI / MDIX. WiFi 5 chuẩn 802.11b/g/n/ac Wave 2 (Băng tần kép, MU-MIMO), Bluetooth LE và giao diện USB.
Teltonika RUTX11 chuẩn công nghiệp hiệu năng cao có khả năng hoạt động ổn định trong môi trường công nghiệp với đầy đủ các tính năng, bảo mật hỗ trợ các ứng dụng trong hệ thống mạng đòi hỏi độ ổn định cao, Dual SIM với khả năng tự động chuyển đổi dự phòng, WAN dự phòng và các tính năng chuyển mạch.
Bộ định tuyến 3G/4G công nghiệp RUTX11 của Teltonika là một giải pháp đáng tin cậy với cấu hình phần cứng mạnh mẽ. RUTX11 trang bị CPU ARM Cortex A7 lõi tứ với tốc độ 717 MHz, RAM 256MB DDR3 và bộ nhớ trong 256MB SPI Flash, thiết bị đảm bảo hiệu suất ổn định và xử lý dữ liệu mạnh mẽ. Bộ định tuyến RUTX11 hỗ trợ Bluetooth LE 4.0, giúp kết nối các cảm biến trực tiếp với router để quản lý và giám sát thiết bị một cách thuận tiện.
Với giao diện WEB, Router 3G/4G công nghiệp RUTX11 của Teltonika mang lại trải nghiệm dễ dàng cho việc cấu hình, kiểm tra trạng thái, cập nhật firmware, và quản lý sự cố. Đồng thời RUTX11 chạy trên hệ điều hành RutOS, một phiên bản của Linux được xây dựng trên nền OpenWrt, cho phép người dùng linh hoạt tùy chỉnh các tính năng của router thông qua nhiều ngôn ngữ như Busybox shell, Lua, C và C++.
Tham khảo thêm các model: TELTONIKA RUT240, TELTONIKA RUT950, TELTONIKA RUT955, TELTONIKA RUTX12
Thông số kỹ thuật Router TELTONIKA RUTX11
MOBILE | |
Mobile module | 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps |
SIM switch | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail |
Status | Signal strength, SINR, RSRP, RSRQ, Bytes sent/received, connected band, carrier aggregation, IMSI, ICCID |
SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, SMS auto reply |
USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
Black/White list | Operator black/white list |
Multiple PDN | Possibility to use different PDNs for multiple network access and services |
Band management | Band lock, Used band status display |
APN | Auto APN |
Bridge mode | Direct connection (bridge) between mobile ISP and device on LAN |
WIRELESS | |
Wireless mode | 802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA) |
WiFi security | WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation |
ESSID | ESSID stealth mode |
WiFi users | up to 150 simultaneous connections |
Wireless Hotspot | Captive portal (Hotspot), internal/external Radius server, built in customizable landing page |
ETHERNET | |
WAN | 1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
LAN | 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
BLUETOOTH | |
Bluetooth 4.0 | Bluetooth low energy (LE) for short range communication |
NETWORK | |
Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP) |
Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL), DLNA |
VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
Connection monitoring | Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
Firewall | Port forwards, traffic rules, custom rules |
DHCP | Static and dynamic IP allocation, DHCP Relay, Relayd |
QoS / Smart Queue Management (SQM) | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
DDNS | Supported >25 service providers, others can be configured manually |
Network backup | VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as an automatic Failover |
Load balancing | Balance Internet traffic over multiple WAN connections |
SSHFS | Possibility to mount remote file system via SSH protocol |
SECURITY | |
Authentication | Pre-shared key, digital certificates, X.509 certificates |
Firewall | Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
Attack prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
VLAN | Port and tag based VLAN separation |
Mobile quota control | Custom data limits for both SIM cards |
WEB filter | Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
Access control | Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
VPN | |
OpenVPN | Multiple clients and a server can run simultaneously, 12 encryption methods |
OpenVPN Encryption | DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
IPsec | IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256) |
GRE | GRE tunnel |
PPTP, L2TP | Client/Server instances can run simultaneously, L2TPv3 support |
Stunnel | Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
DMVPN | Method of building scalable IPsec VPNs |
SSTP | SSTP client instance support |
ZeroTier | ZeroTier VPN client support |
WireGuard | WireGuard VPN client and server support |
MODBUS | |
MODBUS TCP SLAVE | |
ID filtering | Respond to one ID in range [1;255] or any |
Allow remote access | Allow access through WAN |
Custom registers | MODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality |
MODBUS TCP MASTER | |
Supported functions | 01, 02, 03, 04, 05, 06, 15, 16 |
Supported data formats | 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
MQTT GATEWAY | |
Gateway | Allows sending commands and receiving data from MODBUS Master trough MQTT broker |
DNP3 | |
Supported modes | TCP Master, DNP3 Outstation |
DATA TO SERVER | |
Protocols | HTTP(S), MQTT, Azure MQTT, Kinesis |
MONITORING & MANAGEMENT | |
WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log |
FOTA | Firmware update from server, automatic notification |
SSH | SSH (v1, v2) |
SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
Call | Reboot, Status, Mobile data on/off, Output on/off |
TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
MQTT | MQTT Broker, MQTT publisher |
SNMP | SNMP (v1, v2, v3), SNMP trap |
JSON-RPC | Management API over HTTP/HTTPS |
MODBUS | MODBUS TCP status/control |
RMS | Teltonika Remote Management System (RMS) |
IoT PLATFORMS | |
Clouds of things | Allows monitoring of: Device data, Mobile data, Network info, Availability |
ThingWorx | Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
Cumulocity | Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP |
Azure IoT Hub | Can send device IP, Number of bytes send/received, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server |
SYSTEM CHARACTERISTICS | |
CPU | Quad-core ARM Cortex A7, 717 MHz |
RAM | 256 MB, DDR3 |
FLASH storage | 256 MB, SPI Flash |
FIRMWARE / CONFIGURATION | |
WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
FOTA | Update FW/configuration from server |
RMS | Update FW/configuration for multiple devices at once |
Keep settings | Update FW without losing current configuration |
FIRMWARE CUSTOMIZATION | |
Operating system | RutOS (OpenWrt based Linux OS) |
Supported languages | Busybox shell, Lua, C, C++ |
Development tools | SDK package with build environment provided |
LOCATION TRACKING | |
GNSS | GPS, GLONASS, BeiDou, Galileo and QZSS |
Coordinates | GNSS coordinates via WebUI, SMS, TAVL, RMS |
NMEA | NMEA 0183 |
Server software | Supported server software: TAVL, RMS |
Geofencing | Configurable multiple geofence zones |
USB | |
Data rate | USB 2.0 |
Applications | Samba share, USB-to-serial |
External devices | Possibility to connect external HDD, flash drive, additional modem, printer |
Storage formats | FAT, FAT32, NTFS |
INPUT/OUTPUT | |
Input | 1 x Digital Input, 0 – 6 V detected as logic low, 8 – 30 V detected as logic high |
Output | 1 x Digital Output, Open collector output, max output 30 V, 300 mA |
Events | SMS, Email, RMS |
POWER | |
Connector | 4 pin industrial DC power socket |
Input voltage range | 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection |
PoE (passive) | Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards |
Power consumption | 16 W Max |
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) | |
Ethernet | 4 x RJ45 ports, 10/100/1000 Mbps |
I/Os | 1 x Digital Input, 1 x Digital Output on 4 pin power connector |
Status LEDs | 4 x WAN type LEDs, 2 x Mobile connection type, 5 x Mobile connection strength, 8 x LAN status, 1 x Power, 2 x 2.4G and 5G WiFi |
SIM | 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, external SIM holders |
Power | 1 x 4 pin DC connector |
Antennas | 2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNSS |
USB | 1 x USB A port for external devices |
Reset | Reboot/User default reset/Factory reset button |
Other | 1 x Grounding screw |
PHYSICAL SPECIFICATION | |
Casing material | Aluminium housing with DIN rail mounting option |
Dimensions (W x H x D) | 115 x 44.2 x 95.1 mm |
Weight | 456 g |
Mounting options | DIN rail, flat surface placement |
OPERATING ENVIRONMENT | |
Operating temperature | -40 C to 75 C |
Operating humidity | 10 % to 90 % non-condensing |
Ingress Protection Rating | IP30 |
REGULATORY & TYPE APPROVALS | |
Regulatory & Type Approvals | CE/RED, RoHS, REACH |
Vehicle | ECE R10 (E-mark) |
EMI IMMUNITY | |
Standards | EN 55032:2015, EN 55035:2017, Draft ETSI EN 301 489-1 V2.2.1, ETSI EN 301 489-3 V2.1.1, Draft ETSI EN 301 489-17 V3.2.0 |
ESD | EN 61000-4-2:2009 |
RS | EN 61000-4-3:2006+A1:2008+A2:2010 |
EFT | EN 61000-4-4:2012 |
Surge protection | EN 61000-4-5:2014 |
CS | EN 61000-4-6:2014 |
DIP | EN 61000-4-11:2004 |
RF | |
Standards | ETSI EN 300 328 V2.1.1, ETSI EN 301 893 V2.1.1, ETSI EN 300 440 V2.1.1 |
SAFETY | |
Standards | IEC 62368-1:2014 (Second Edition) EN 62368-1:2014+A11:2017 EN 50385:2017 EN 62232:2017 |

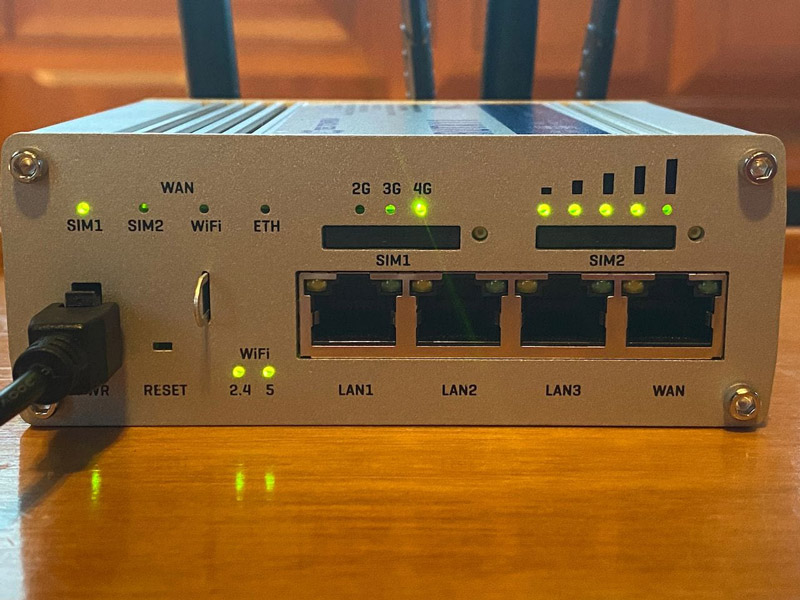

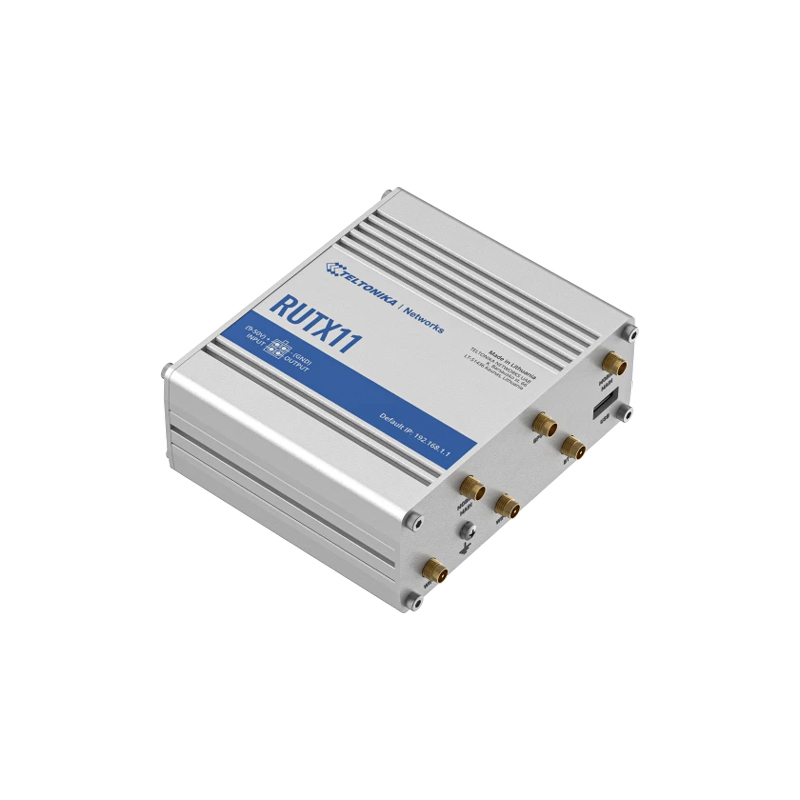

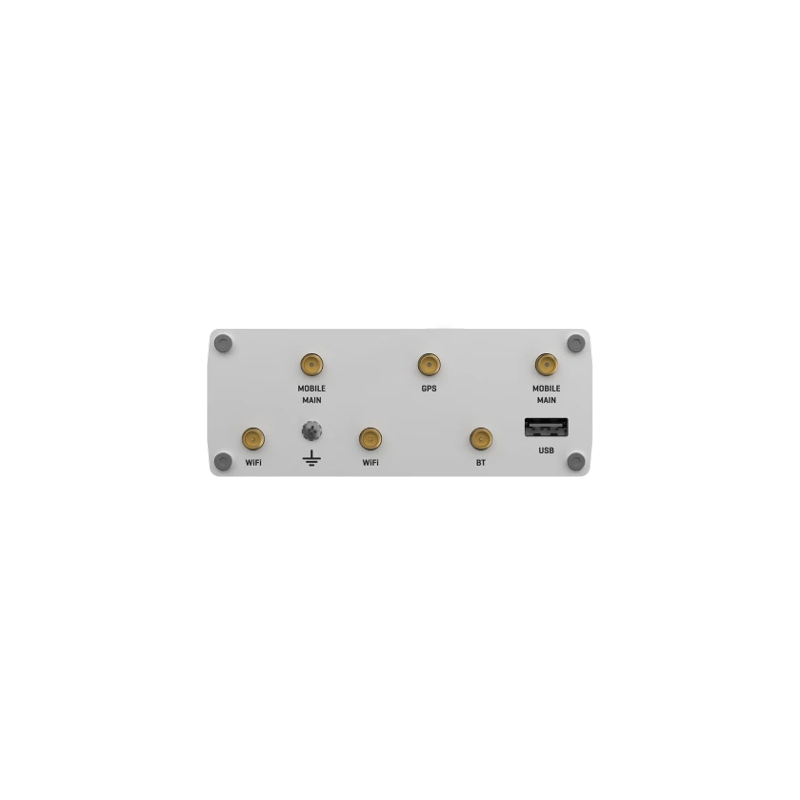

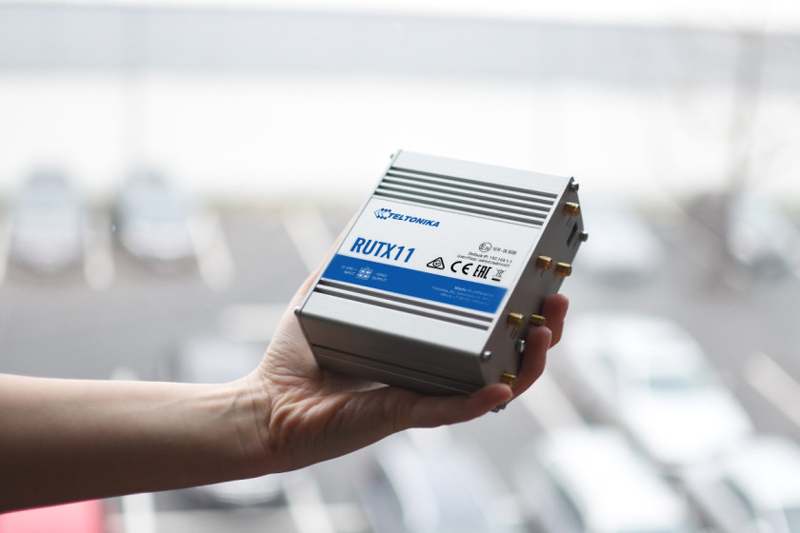

Một số hình ảnh Router wifi 4G TELTONIKA RUTX11
